Description

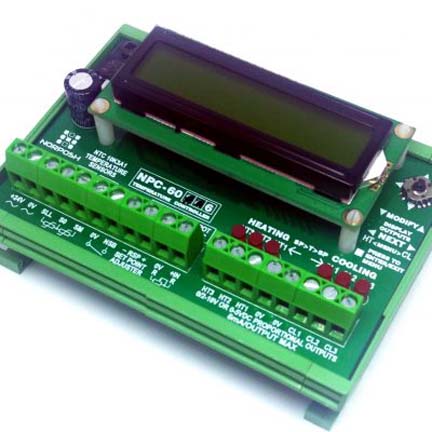

The NPC-10V5DR is a Proportional Integral Free Cooling Damper Controller. Setpoint can be adjusted remotely by using Digital Remote, External Pot or 0-10VDC source. The controller has separate analogue 0-10VDC proportional output for Heating, Cooling and Damper. The controller is designed specifically to control Damper Actuators, Thyristor Controllers, Relay Modules etc.
FEATURES
- Three Analogue outputs, 1 Heating output, 1 Cooling output and 1 Damper Actuator output
- Digitally calibrated 0-10VDC proportional outputs
- Separate output for Heating, Cooling and Dampers, i.e., Plug n Play, no configuration required
- Full Proportional + Integral action. Integral action can be switch off if not required
- User friendly Back-lit 16X2 LCD Display with 5Way Navigation Switch
- Temperature and Setpoint range from -5°C to +95°C with a resolution of 0.1°C. Min and Max Setpoint range is user adjustable
- Temperature Sensors offset feature. With this feature, individual offset of ±5°C with a resolution of 0.1°C can be adjusted to eliminate error for Return Air and Outside Temperature Sensors.
- Night Set-back Input
- Remote Setpoint input, i.e. Two-wire Digital, Resistive 0-10KΩ, 1-11KΩ etc. and Analogue 0-10VDC
- 24VAC/DC Power input
- Din-rail PCB Holder
Specifications
| Power Supply | 24VAC/DC, -15/+10% 130mA max |
| Temperature and Setpoint Range | -5°C to 95°C, 0.1°C Resolution |
| Return and Outside Sensors | NTC 10K3A1, Offset is user adjustable ±5°C, 0.1°C Resolution |
| Integral Time (Heating & Cooling) | 0 to 500seconds |
| Proportional Band (Prop band) | 0-50°C, 1°C Resolution |
| Deadband | 0-10°C, 1°C Resolution |
| Night Set-back | -5°C to 95°C, 0.1°C Resolution |
| External Setpoint Input | Digital Remote, Ext. Pot/0-10VDC |
| External Pot Resistance | User selectable from Menu: 0-10KΩ, 1-11KΩ, 0-5KΩ and 560Ω-10560Ω |
| External Pot Setpoint Range | User selectable: ±4°C, ±5°C, ±10°C, ±20°C, 5/35°C, -5/45°C, 0/50°C, -10/50°C, 30/90°C, 40/90°C, 25/95°C, -5/95°C |
| External 0-10VDC Setpoint Range | User adjustable: anywhere between -5°C to 95°C with minimum difference of 1°C |
| Digital Remote Range (Setpoint Adjuster) | User adjustable: anywhere between -5°C to 95°C with minimum difference of 1°C |
| Proportional Outputs (Heating, Cooling & Damper Actuator) | Digitally Calibrated 0-10VDC, 5mA per output max at 10VDC |
| Dimensions | 113 x 82 x 47 (W x H x D) |
